Coin Mechanism
Specifications
| Items | Descriptions | Remarks |
|---|---|---|
| Dimensions [mm] | 138(W)x356(H)x82(D) | Excluding connection cable |
| Maximum coin size | 最大硬币迪ameter ø30 mm | Contact us about applicable coins of each country |
| Validation speed | Approx. 2 coins/sec. | |
| Switchable validation accuracy | Available | |
| Setting function | DIP switches | |
| Display functions | Display of failures, preventive maintenance functions | See photos below |
| Interfaces | Multi-drop bus (MDB), Serial interface | |
| Number of tubes | 5 tubes | Changeable tube configuration |
| Change coin storage unit structure | 5 tube coin cassette (back cover opening and closing mechanism) |
|
| Alternative payout functions | Available | Payout can be made from an alternative tube when a coin gets stuck. |
| Additional features | Support for version upgrades | Software |
| Cassette unit is lockable by padlock | Padlock available as an option. | |
| Product Availability | Available for China,Thailand. | |

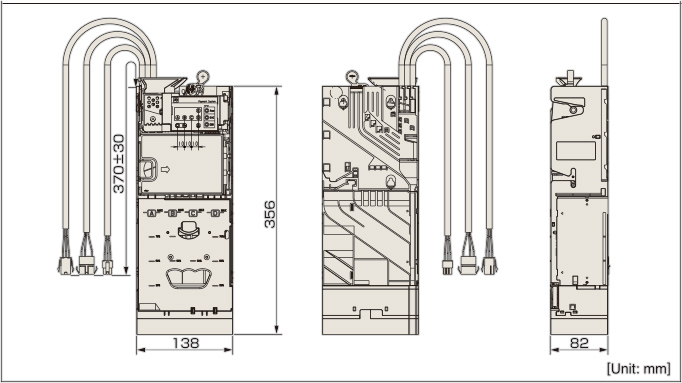

Dimensions
Features
High reliability design
- Independent payout mechanism for improved reliability
- Improved durability of various parts
- High performance sensors for improved coin detection
Independent payout mechanism
Even if a coin gets stuck in one place, the payout can be made from an alternative tube.
Even if a coin gets stuck in one place, the payout can be made from an alternative tube.

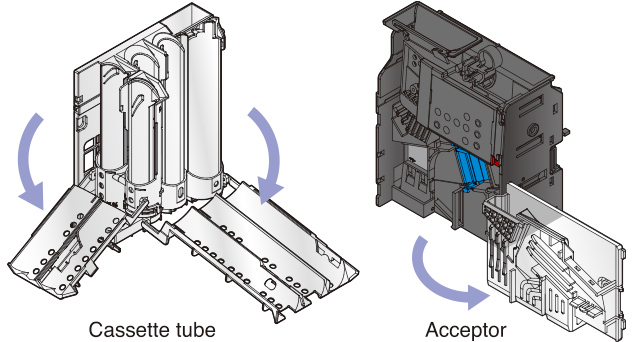

Easy maintenance
- Use of cassette tube structure for easy removal and mounting
- Improved cleanability makes routine maintenance easy
- Alert functions for preventive maintenance and fault diagnosis
・Preventive maintenance
Display of cleaning time and parts replacement guidelines
・Preventive maintenance
Display of total accepted coins and total paid out coins
(10,000 transactions)
・Fault diagnosis
Display of fault codes
Version upgrades
- Support for software version upgrades
Flexibility
- Changeable tube configuration
- Medal support
- Built-in conversion to serial interface function
Main applications

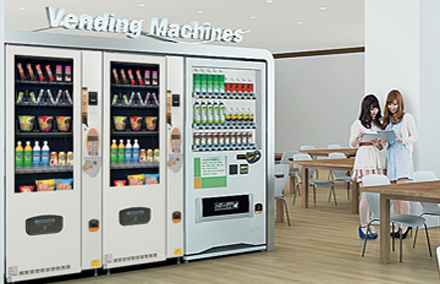

- Vending machines
- Parking payment machines
- Ticket vending machines
- ID photo booths
- Kiosk terminals
- Gas station payment machiness
